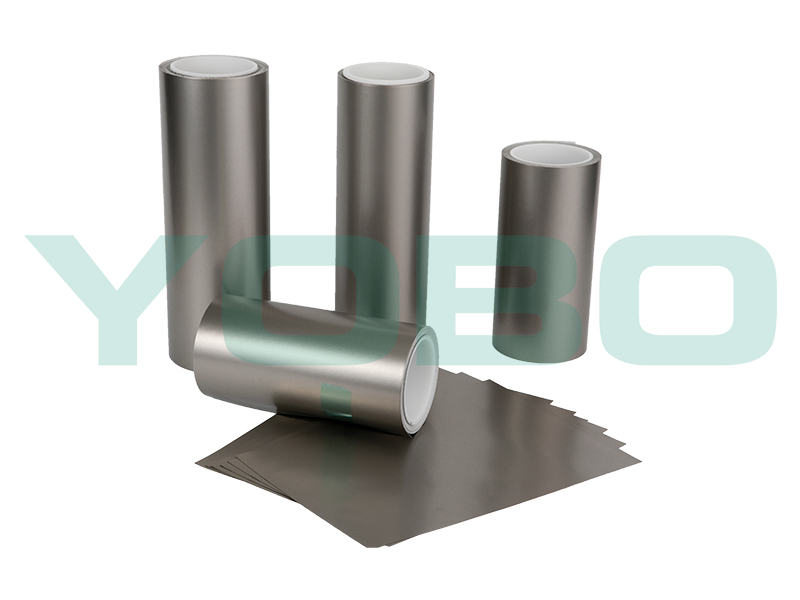

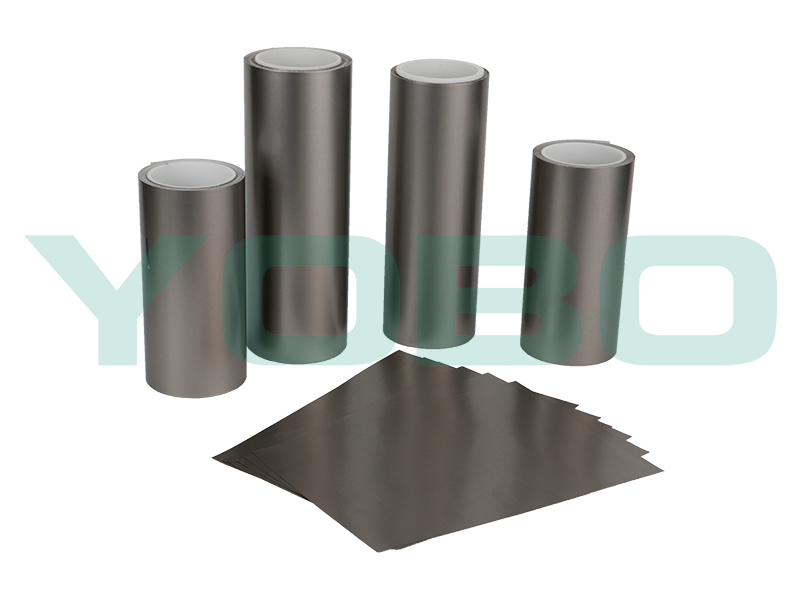

EMAS-18N/22N/25N electromagnetic noise suppression sheet

EMAS-18N/22N/25N electromagnetic noise suppression sheet

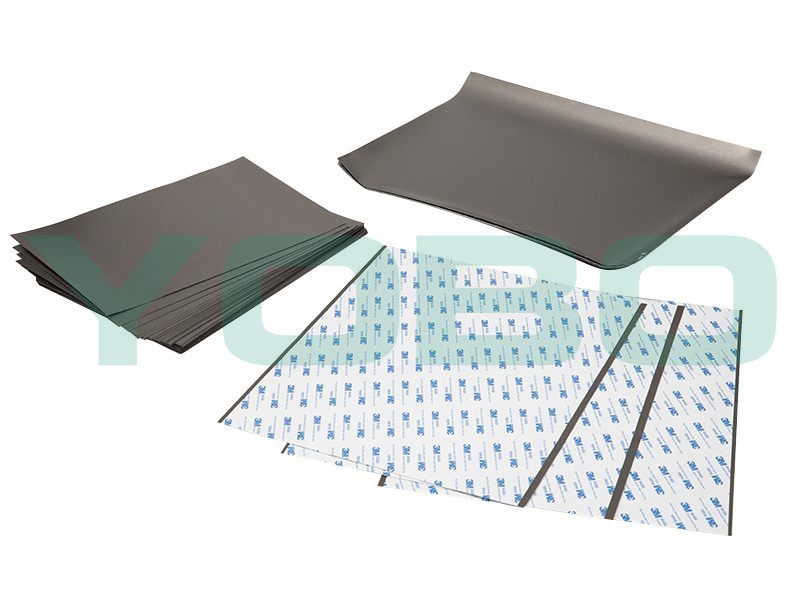

The company's EMAS series products are made by mixing, dispersing and pressing micron-level flake alloy soft magnetic powder and polymer, and have a good electromagnetic noise suppression function. The material is soft and can be easily die-cut into different shapes and sizes. At the same time, according to customer requirements, different types of double-sided tapes with a thickness of 0.005mm-0.05mm can be laminated, and it can also be used with conductive materials such as copper foil, aluminum foil, and conductive cloth.



E-mail: [email protected]

Product Details

product description:



The company's EMAS series products are made by mixing, dispersing and pressing micron-level flake alloy soft magnetic powder and polymer, and have a good electromagnetic noise suppression function. The material is soft and can be easily die-cut into different shapes and sizes. At the same time, according to customer requirements, different types of double-sided tapes with a thickness of 0.005mm-0.05mm can be laminated, and it can also be used with conductive materials such as copper foil, aluminum foil, and conductive cloth.



Product Features:



1. High magnetic permeability.


2. Coil delivery, easy to process.


3. It can be used with conductive materials such as copper foil, aluminum foil, conductive cloth, etc. to enhance the absorption/shielding effect.


4. Exquisite appearance, no powder.



EMAS-18N technical parameters:



Test items Technical index unit testing method
Absorbing material thickness 0.02-0.5 (±10%) mm ASTM D374
μ ' @ 1MHz 180±10% with Agilent E4991B
Surface resistance ≥1X10*5 Ω SJ/T10694-2006
density 3.4±0.3 g/cm³ ASTM D792
Operating temperature -40~120 °C -
Operating frequency range 10M ~ 6G Hz -
Double-sided tape thickness / mm ASTM D3652



Product performance: Product structure:



                                                                                                                                                            Products are RoHS compliant and halogen-free



EMAS-22N technical parameters:



Test items Technical index unit testing method
Absorbing material thickness 0.02-0.5 (±10%) mm ASTM D374
μ ' @ 1MHz 220±10% with Agilent E4991B
Surface resistance ≥1X10*4 Ω SJ/T10694-2006
density 3.4±0.3 g/cm³ ASTM D792
Operating temperature -40~120 °C -
Operating frequency range 10M ~ 6G Hz -
Double-sided tape thickness / mm ASTM D3652

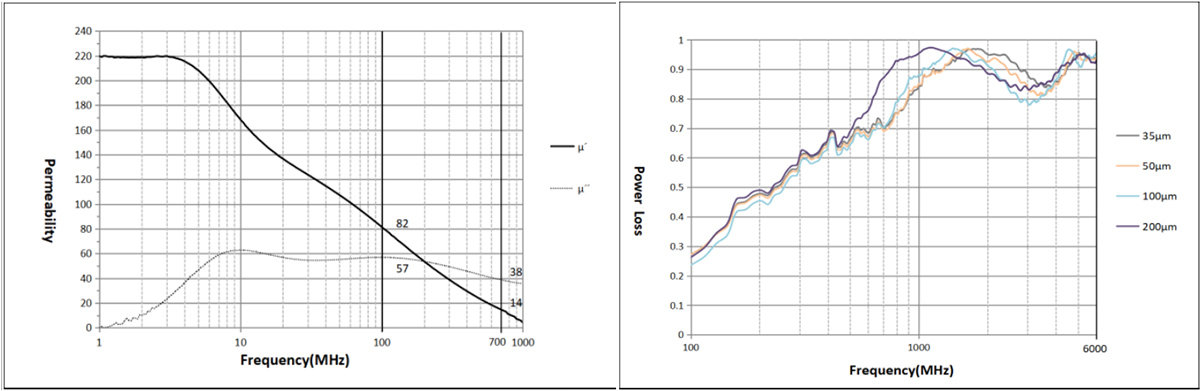

Product performance: Product structure:



                                                                                                                       Products are RoHS compliant and halogen-free





EMAS-25N technical parameters:



Test items Technical index unit testing method
Absorbing material thickness 0.02-0.5 (±10%) mm ASTM D374
μ ' @ 1MHz 250±10% with Agilent E4991B
Surface resistance ≥1X10*4 Ω SJ/T10694-2006
density 3.4±0.3 g/cm³ ASTM D792
Operating temperature -40~120 °C -
Operating frequency range 10M ~ 6G Hz -
Double-sided tape thickness / mm ASTM D3652

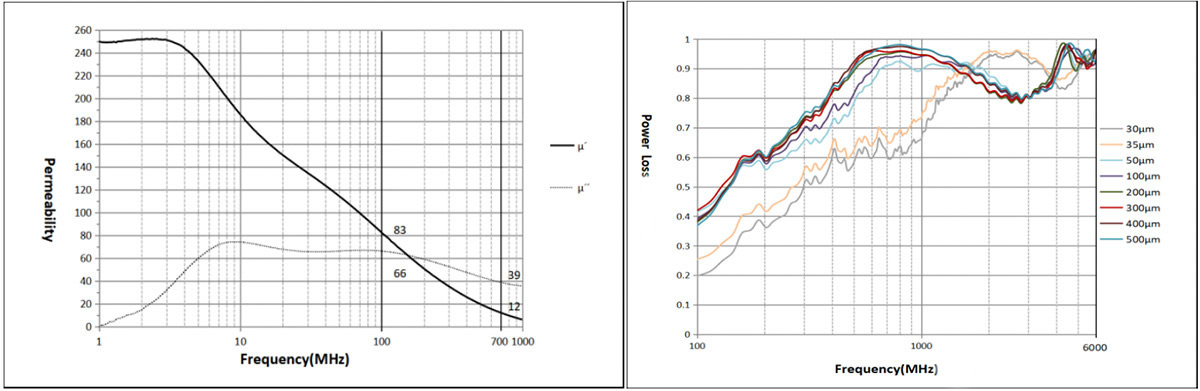

Product performance: Product structure:



                                                                                                                                                            Products are RoHS compliant and halogen-free





Note: The information contained in the data sheet is to help you design and select a guide. They are not guaranteed to be applicable to all applications, and users should determine the suitability of each application. In addition, before using this product, we recommend that users conduct a test to determine whether the product is suitable for the area we require. We reserve all rights, including copyright, and the content of this document. Without the consent of the company, copying, reprinting and other purposes are strictly prohibited. If you need more help, please contact us.
