EMAS-RSD2-B3 Near Field Shielding Material

EMAS-RSD2-B3 Near Field Shielding Material

The company's EMAS-RSA20 series products are soft magnetic materials made of micron-level flake iron-based alloy powder and silica gel mixed, dispersed, and pressed. It is halogen-free and environmentally friendly. It has excellent wave-absorbing effects and can effectively suppress signals such as IC chips and antennas. Electromagnetic interference between the source and the radiator, chassis and other components.



E-mail: [email protected]

Product Details

product description:



The company’s EMAS-RS series products are soft magnetic materials made of micron-level flake iron-based alloy powder and silica gel mixed, dispersed, and pressed. It is halogen-free and environmentally friendly. It has excellent wave-absorbing effects and can effectively suppress signals such as IC chips and antennas. Electromagnetic interference between the source and the radiator, chassis and other components.



Product example:                                                                                          Shielding effectiveness:                                          The product is RoHS compliant and halogen-free:





Product Features:



1. Excellent insulating materials

2. Excellent weather resistance and flexibility

3. Wave absorption and electromagnetic shielding, good surface compatibility

4. High reliability for long-term use



Technical Parameters:



Test items

Technical index

unit

testing method

Shielding effectiveness

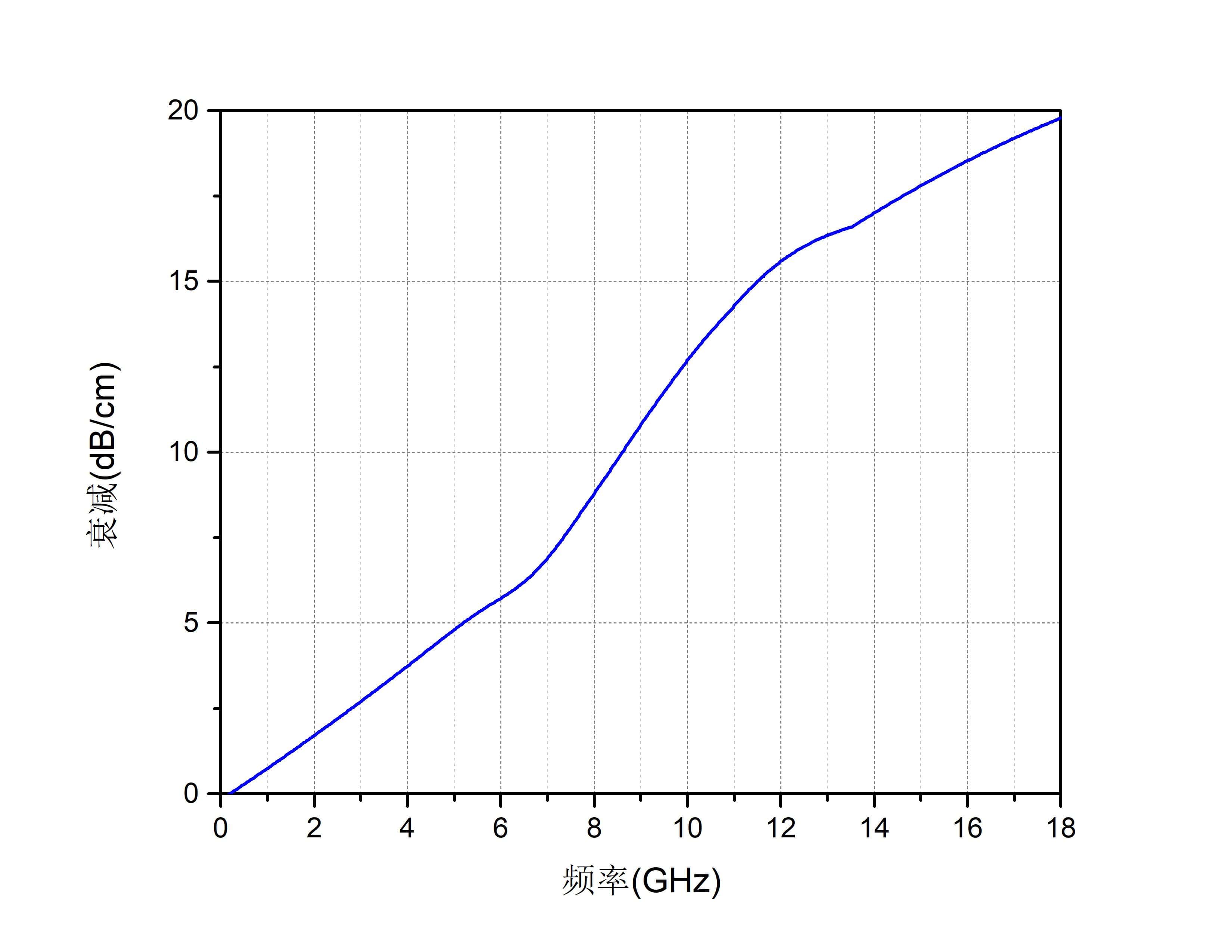

Please refer to the figure on the right for the measured value

dB/cm

GJB: 2038-1994

hardness

35±5

Shore A

ASTM D2240

density

4.2±0.2

g/cm3

ASTM D792

Thermal Conductivity

2.0±0.2

W / mK

ISO22007

-2-2008

Flammability rating

V0

/

UL94

Operating temperature

-40~175

°C

-

Shipping specifications

305*305(sheet)

mm

-



Note: The information contained in the data sheet is to help you design and select a guide. They are not guaranteed to be applicable to all applications , and users should determine the suitability of each application . In addition, before using this product, we recommend that users conduct a test to determine whether the product is suitable for the area we require . We reserve all rights, including copyright, and the content of this document. Without the consent of the company, copying, reprinting and other purposes are strictly prohibited. If you need more help, please contact us.
